Best Replacement Engine for Troy Bilt Horse Tiller: A Complete Repower Guide

Your Troy Bilt Horse tiller still has good bones. The tines are sharp, the transmission shifts, and the frame is solid. But the engine smokes, stalls under load, or won’t start at all.

Replacing the engine on a Horse is rarely a simple bolt-on job. Crankshaft diameter, keyway length, bolt pattern, and PTO style all have to match — or you need an adapter. Most guides skip that part. This one doesn’t.

Below you’ll find five parts that solve the most common failure points on a Horse: tines, carburetors, a reverse disc, and a seal kit. We also cover complete engine options, rebuild-vs-replace math, and a fitment checklist you can use before you buy anything.

Here’s a quick look at how the five picks compare on the specs that matter most.

Features	Stens Tiller Tines	Buckbock H60 Carb	LEIMO KPARTS Carb	GW-2111 Reverse Disc	Tiller Seal Kit
Primary Function	Replace worn tines	Fuel delivery	Fuel delivery	Reverse drive	Seal leaks
Engine Fitment	Horse and Pony	Tecumseh H30-HH60	Tecumseh H30-HH70	Horse models only	Horse models only
Key Spec	8 right, 8 left tines	No manual choke	Carb plus filter	3.75 in OD,.375 ID	4 seals included
Hardware Included	Yes	Full kit	Carb only	No	No
Best Use Case	Full tine refresh	5-6 HP Tecumseh	Budget carb swap	Reverse slipping	Leak repair

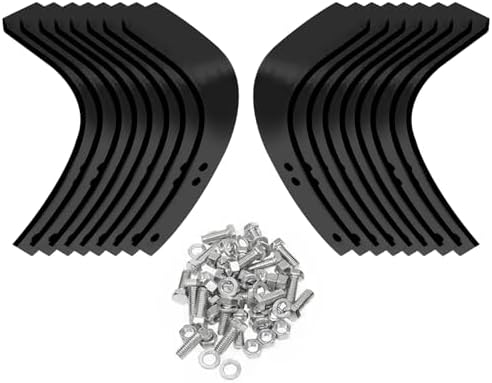

Stens 370-350 Tiller Tine…

This is a complete tine set for Troy Bilt Horse and Pony tillers. Sixteen tines total — eight right-hand and eight left-hand — plus the mounting hardware. If your tiller pulls to one side, jumps, or leaves unbroken strips, worn tines are usually the cause.

Stens makes aftermarket parts for outdoor power equipment and this set is built in the United States. The hardware inclusion matters more than it sounds. Tine bolts seize, strip, and snap on old Horses, and chasing replacements at a hardware store wastes an afternoon. Having them in the box saves that trip.

The catch: this is a full-set purchase. If only two tines are bent, you’re buying sixteen anyway. Check your existing tines for wear before ordering — measure the cutting edge and look for rounded tips. Also confirm your model is a Horse or Pony, since other Troy Bilt frames use different tine geometry.

• 16 tines total: 8 right-hand, 8 left-hand
• Fits Troy Bilt Horse and Pony models
• Mounting hardware included in the box
• Made in the United States
• Full-set replacement, not individual tines

Best for: Owners doing a full tine refresh on a Horse or Pony who want hardware included and don’t want to source bolts separately.

Buckbock H60 HH60 Carbure…

A direct aftermarket replacement for the Tecumseh carburetor used on 5 and 6 HP four-cycle engines. It cross-references a long list of OEM numbers — 632631, 632230, 632272, 632235, 631067, and 631067A among them. If your Horse has a Tecumseh H60 or HH60, this is the carb that fits.

What sets this kit apart is the extras. You get the carburetor, an air filter, a shut-off valve, fuel line, spark plug, gasket, fuel filter, and two clips. That’s a full tune-up in one box. For a machine sitting in a shed for two years, having the fuel line and filter on hand is genuinely useful — old rubber lines crack and pull air, which causes the surging people blame on the carb.

One real limitation: this unit has no built-in manual choke. If your original carb had a choke lever you operate by hand, you’ll need to work around that. Some owners adapt the linkage; others find the engine starts fine with priming. It’s not a dealbreaker, but know it going in. Also verify your engine is a Tecumseh, not a Kohler — the bolt pattern differs.

• Replaces Tecumseh 632631, 632230, 632272, 632235, 631067, 631067A
• Fits H30, H50, H60, HH60, and 5-6 HP four-cycle engines
• Includes air filter, fuel line, shut-off valve, spark plug, gaskets, clips
• No built-in manual choke
• Air filter replaces Tecumseh 30727

Best for: Anyone with a Tecumseh-powered Horse who wants a carburetor plus the supporting tune-up parts in a single order.

Carburetor for Tecumseh 6…

Another Tecumseh replacement carb, this one from LEIMO KPARTS. It covers a slightly wider engine range — H30, H50, H60, HH60, and HH70 — and cross-references even more OEM numbers than the Buckbock unit, including 631867, 632019A, 632019, 631828, and 632076.

The fitment list extends to John Deere 624D tillers with the H60 6HP Tecumseh, plus Sears and other rebadged machines. That’s helpful if your Horse shares an engine with a rebranded tiller. The air filter matches Tecumseh 30727, same as the Buckbock kit, so filter sourcing is easy either way.

Here’s the trade-off. This listing ships the carburetor and the parts shown in the photos — no fuel line, no spark plug, no shut-off valve. If you already have those on the shelf, this is the leaner, cheaper route. If you don’t, you’ll be making a second order. The wider OEM cross-reference is the main reason to pick this one over the Buckbock, especially if your engine tag shows an oddball spec number.

• Fits Tecumseh H30, H50, H60, HH60, HH70 engines
• Replaces 632631, 632230, 632272, 631067, 632235, 631867, 632019A, 632019, 631828, 632076
• Compatible with John Deere 624D and Sears tillers using the H60
• Air filter replaces Tecumseh 30727
• Ships with carburetor only — no tune-up extras

Best for: Buyers who already stock fuel line and plugs, or whose engine tag shows an OEM number the Buckbock kit doesn’t list.

GW-2111 Horse Tiller Reve…

The reverse disc is a small rubber wheel that presses against the drive pulley to send the tiller backward. When it wears smooth or glazes over, reverse stops working or slips under any load. This Zeenparts disc replaces GW-2111, GW-1919, 240-395, GW-1485, and 756-04171.

It measures 3 3/4 inches outside diameter with a 3/8 inch inside diameter. The compatibility list is long and specific — covering Horse models from the 12055 through 12153 series, plus 21AE682L063 and similar model numbers from 2026 through 2026. That kind of detail matters because Troy Bilt changed the reverse assembly across production years.

Two things to know. This is an aftermarket part, not OEM, though the listing notes it works as a reliable replacement. And the size is fixed — measure your existing disc before ordering. A disc that’s too thick won’t engage cleanly, and one that’s too thin slips. If reverse is your only problem and the disc looks fine, check the linkage adjustment first. A stretched cable mimics a worn disc.

• Replaces GW-2111, GW-1919, 240-395, GW-1485, 756-04171
• 3 3/4 in OD x 3/8 in ID
• Fits Horse models 12055 through 12153 series
• Covers 2026-2026 model years including 21AE682L063
• Aftermarket part, not original equipment

Best for: Horse owners whose reverse has gone soft, slipped, or quit entirely and who’ve confirmed the disc is the worn component.

Replacement Kits Tiller A…

A four-seal kit for Horse model tillers: two axle seals and two tine seals. Leaking seals let dirt into the gearbox and oil out, which is how a good transmission dies early. If you see grease streaks around the axle housings or oil weeping near the tine shaft, this is the fix.

The axle seals replace GW-9621, GW-9601, 921-04031, 240-804, and 49-051, sized at 1.000 inch shaft by 1.500 inch bore. The tine seals replace GW-9618, GW-9616, GW-9602, GW-9618099, 240-507, and 49-050, sized at 1.250 inch shaft by 2.000 inch bore. Those dimensions are the important part — seals are unforgiving about size.

Seal replacement isn’t a quick job. You’re pulling the axle housings or splitting the case, depending on which seal failed. Budget a full weekend if you’re doing all four. The payoff is a gearbox that stays clean and a tiller that runs another decade. Buy this kit while you’re already in there — pulling it apart twice to save a few dollars on seals is a bad trade.

• Four seals: two axle, two tine
• Axle seals: 1.000 in shaft x 1.500 in bore
• Tine seals: 1.250 in shaft x 2.000 in bore
• Replaces GW-9621, GW-9601, 921-04031, 240-804, 49-051 and GW-9618, GW-9616, GW-9602, 240-507, 49-050
• Aftermarket direct replacements for Horse models

Best for: Anyone already opening the gearbox for another repair, or dealing with visible oil leaks at the axle or tine shaft.

How We Chose These Products

We started with the failure points that actually strand a Horse tiller: worn tines, a dead carburetor, a slipping reverse, and leaking seals. Those four categories cover most of what sends these machines to the back of the shed.

From there we looked at fitment specificity. A part that lists exact model numbers and OEM cross-references is more trustworthy than one that says ‘fits most tillers.’ We also weighed what comes in the box — hardware, gaskets, filters — since incomplete kits cost more in extra orders and lost weekends. Aftermarket status wasn’t a disqualifier, but we noted it honestly in each review.

Buying Guide: What Really Matters

Before you buy any replacement engine or part, identify your tiller. The Horse came in several generations — Horse I, Horse II, and later models — and engine mounting changed between them. Find the model and serial plate on the frame, then find the engine spec number stamped on the blower housing or valve cover. Those two numbers drive every decision that follows.

Crankshaft dimensions are the make-or-break spec for a full engine swap. You need the shaft diameter, the shaft length, the keyway size, and the PTO style. A Tecumseh H60 typically uses a 1-inch diameter shaft, but length and keyway vary by spec. Measure your old engine’s shaft with calipers before shopping. A replacement engine with the wrong shaft length won’t align with the pulley, and misalignment eats belts.

Bolt pattern and mounting base come next. Measure the distance between mounting holes on your existing engine and compare to the candidate. Some swaps need an adapter plate; some need new holes drilled in the frame. Neither is fatal, but both add time. For a deeper look at how engine and drivetrain choices interact with soil conditions, the best garden tiller for clay soil breakdown is worth a read before you commit to a repower.

Our Top Recommendation

For most Horse owners, the Stens 370-350 tine set delivers the most immediate, noticeable improvement per dollar. Worn tines are the single biggest reason a Horse stops tilling well, and this set includes the hardware that usually fights you. It’s the pick if your engine runs but the machine won’t dig.

If your engine is the problem and it’s a Tecumseh, the Buckbock H60 carburetor kit is the stronger buy. The included fuel line, filter, and plug turn a carb swap into a full tune-up. The LEIMO KPARTS carb is the better choice when you need the wider OEM cross-reference or already have the extras on hand.

For a complete repower — not just a carb — the math usually favors a rebuild if the block is sound. A carb, coil, and gasket set costs far less than a new engine, and a Tecumseh H60 that runs well is a solid powerplant. Complete swaps make sense when the block is cracked, the crank is scored, or parts are unobtainable. Tecumseh discontinued many of these engines, so used and NOS (new old stock) parts are drying up. Kohler and Honda GX swaps are viable but require adapter plates and careful shaft matching.

Frequently Asked Questions

How do I know if my Horse has a Tecumseh or a Kohler engine?
Look at the engine shroud or valve cover for a stamped spec number and brand name. Tecumseh engines typically have a model code like H60 or HH60. Kohler engines use K-series or Command designations. The carburetor and ignition parts are not interchangeable between brands, so confirm before ordering.

Can I swap in a Harbor Freight Predator engine?
Yes, but it’s not bolt-and-go. Predator 212 and 301cc engines use a different shaft and bolt pattern than the original Tecumseh. You’ll likely need an adapter plate and a pulley that matches the Predator shaft. Measure shaft diameter, length, and keyway before buying, and expect to adjust the throttle linkage and belt alignment afterward.

Should I rebuild my Tecumseh H60 or replace it?
Rebuild if the block, crank, and cylinder are within spec. A carburetor, ignition coil, gaskets, and seals cost a fraction of a new engine. Replace if the block is cracked, the crank journal is scored, or the cylinder needs boring beyond available piston sizes. Given Tecumseh’s discontinuation, rebuild parts are getting harder to source, which tilts the decision toward replacement for badly worn engines.

What torque specs and alignment checks matter after install?
Tighten engine mounting bolts to the frame manufacturer’s spec, then check pulley alignment with a straightedge across both pulley faces. Misalignment of even a few millimeters shortens belt life. Set the throttle cable so the engine reaches full governed speed at the lever’s top position, and verify the belt tension before your first run. If you’re tuning a different machine in the meantime, the best Troy Bilt riding mower guide covers similar drivetrain checks.

One more note on sourcing. For hard-to-find engine parts and repower kits, the replacement engine and parts guide tracks current availability, which helps when a specific OEM number has gone extinct.
