Best Pop Up Sprinkler Heads for Small Lawns: A No-Nonsense Guide

Your small lawn should be the easiest part of your yard to water. Yet most sprinkler systems are designed for sprawling half-acre lots, blasting water over sidewalks and driveways while your grass gets patchy coverage. The result is wasted water, higher bills, and a lawn that looks worse than if you’d just used a hose.

Picking the right pop-up sprinkler head for a compact yard comes down to three things: matching the spray distance to your actual dimensions, getting an arc adjustment fine enough to avoid overspray, and choosing a body height that clears your grass without becoming a trip hazard. Rotors and spray heads work differently, and the wrong choice for your layout means dry spots or soaked pavement.

This guide covers five options that solve different problems. The Hunter PGP-ADJ is the versatile workhorse for larger small lawns. Rain Bird’s 1804VAN handles tight corners with tool-free adjustment. The 1804LN body lets you build a custom setup. The 1806VAN adds height for thick turf. And the HolyMaji nozzles offer a cheap way to refresh existing heads. Here’s how they compare.

Features	Hunter PGP-ADJ	Rain Bird 1804VAN	Rain Bird 1804LN	Rain Bird 1806VAN	HolyMaji Nozzles
Product Type	Gear-driven rotor	Fixed spray head	Spray body only	Fixed spray head	Replacement nozzles
Pop-Up Height	4 inches	4 inches	4 inches	6 inches	Not applicable
Spray Distance	22-52 feet	Up to 15 feet	Depends on nozzle	Up to 15 feet	Depends on pressure
Arc Adjustment	40-360 degrees	0-360 degrees	Nozzle dependent	0-360 degrees	0-360 degrees
Inlet Size	3/4 inch NPT	1/2 inch NPT	1/2 inch NPT	1/2 inch NPT	Fits standard heads

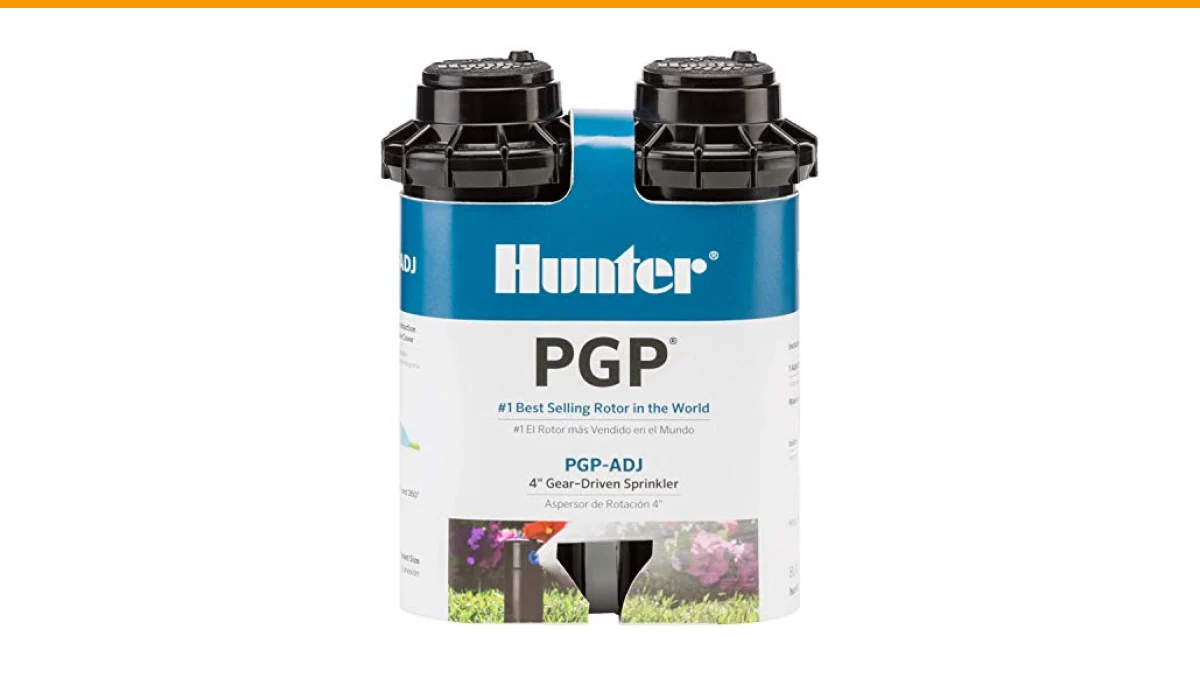

Hunter PGP-ADJ 3/4″ Rotor…

You’ve got a small lawn, but it’s not tiny. Maybe it’s 30 by 40 feet, or you’re covering a side yard that stretches along the house. The Hunter PGP-ADJ is built for exactly this scenario. It’s a gear-driven rotor that throws water 22 to 52 feet, so one or two heads can cover a space that would need four or five fixed spray heads.

The real advantage here is the adjustable arc. It goes from 40 degrees all the way to 360, which means you can water a narrow strip along a fence or a full circle in an open corner. The included 3.0 GPM nozzle handles most situations, and Hunter sells other nozzles if you need to fine-tune the pattern. A water-lubricated gear drive keeps the rotation smooth and quiet, and it’s the same mechanism professionals have trusted for decades.

Here’s the catch: this is a 3/4-inch inlet rotor, not a 1/2-inch spray head. If your existing system uses 1/2-inch connections, you’ll need adapters or a different product. The 4-inch pop-up height also means it can get blocked by tall fescue or unmowed grass. And the adjustment wrench, while handy, is one more thing to keep track of.

• Gear-driven rotation for even coverage without the chatter of impact heads
• Arc adjusts from 40 to 360 degrees with the included tool
• 3.0 GPM nozzle preinstalled; swap for other Hunter nozzles if needed
• 3/4-inch female NPT inlet fits standard rotor connections
• Sold as a 2-pack, which covers most small lawn layouts

Best for: Homeowners with medium-small lawns (roughly 1,000 to 3,000 square feet) who want rotor efficiency and don’t mind a 3/4-inch connection.

Rain Bird 1804VAN 1800 Se…

Your lawn is small enough that a rotor would be overkill. You’ve got a patch of grass maybe 20 by 20 feet, some foundation plantings, and a narrow strip along the driveway. The Rain Bird 1804VAN is the head that fits this kind of tight, detailed landscape. It’s a fixed spray head with a variable arc nozzle, and it pops up 4 inches to clear the grass.

What sets this apart is the textured adjustment collar. You twist it by hand, no tools, to set the arc anywhere from 0 to 360 degrees. That’s a big deal when you’re trying to water a corner without soaking the sidewalk. The spray reaches up to 15 feet with matched precipitation, which means the water falls evenly across the pattern instead of pooling in one spot. The stainless steel spring retracts the stem flush every time, and the wiper seal keeps dirt out.

Fifteen feet of throw is the limitation here. If your lawn is wider than 30 feet, you’ll need multiple heads or a rotor instead. The 1/2-inch inlet also means this won’t replace a 3/4-inch rotor without an adapter. And while the variable arc is convenient, it’s not as precise as a rotor’s geared adjustment for very fine tuning.

• Variable arc nozzle adjusts 0-360 degrees by hand, no tools required
• Spray distance up to 15 feet with matched precipitation
• 4-inch pop-up height clears most residential turf
• Stainless steel spring and pressure-activated wiper seal for long life
• 1/2-inch female threaded inlet fits standard spray head connections

Best for: Small, detailed landscapes with corners, strips, and beds where precise arc control matters more than long-distance throw.

Rain Bird 1804LN 4 in Pop…

You already know what you need. Maybe you’re replacing a worn-out spray head body, or you’re building a system from scratch and want to choose your own nozzles. The Rain Bird 1804LN is the body only, no nozzle included. It’s a 10-pack, so you can outfit a whole zone or keep spares on the shelf.

The value here is flexibility. Rain Bird’s 1800 Series nozzles cover everything from 8-foot half-circle patterns to 15-foot full-circle sprays. You pick the nozzle that matches each spot in your yard. The body itself is heavy-duty plastic with a stainless steel spring and a co-molded wiper seal that keeps grit out of the stem. A mesh filter screen adds another layer of protection against clogging.

The obvious trade-off is that you have to buy nozzles separately. That’s extra cost and extra decisions. If you’re not sure which nozzle goes where, this becomes a research project. And without a nozzle, you can’t test the head right out of the box. But for someone who wants full control over their irrigation layout, that’s a fair exchange.

• Body-only design lets you match any Rain Bird 1800 Series nozzle
• 10-pack covers a full zone or provides plenty of spares
• Stainless steel spring ensures reliable stem retraction
• Mesh filter screen and wiper seal reduce clogging and leaks
• 1/2-inch NPT female inlet fits standard residential systems

Best for: DIY irrigators and repair-focused homeowners who want to customize nozzle selection and stock up on bodies.

Rain Bird 1806VAN 1800 Se…

Your grass isn’t short. Maybe you’ve got St. Augustine, tall fescue, or a lawn that gets a little shaggy between mowings. A standard 4-inch pop-up head disappears under that canopy and sprays into the blades instead of over them. The Rain Bird 1806VAN solves this with a 6-inch pop-up height. It’s the same reliable 1800 Series body, just taller.

Everything else matches the 1804VAN: variable arc from 0 to 360 degrees, hand-adjustable collar, up to 15 feet of spray, matched precipitation, stainless steel spring, and the wiper seal. The extra two inches of stem travel means the nozzle clears taller turf and delivers a cleaner spray pattern. If you’ve ever watched a 4-inch head struggle to pop above thick grass, you know why this matters.

The taller body costs a bit more and sits higher in the ground, which makes it slightly more vulnerable to foot traffic or mower wheels. It’s also overkill for short, manicured turf. And like the 1804VAN, the 15-foot spray distance means you’ll need multiple heads for larger areas.

• 6-inch pop-up height clears tall grass and thick turf
• Variable arc nozzle adjusts 0-360 degrees without tools
• Up to 15-foot spray distance with matched precipitation
• Stainless steel spring and pressure-activated wiper seal
• 1/2-inch female threaded inlet for standard connections

Best for: Lawns with taller grass varieties or homeowners who want the spray to clear the canopy without cranking up water pressure.

HolyMaji 10 Pieces Variab…

Your existing sprinkler heads work fine, but the nozzles are clogged, worn, or spraying unevenly. You don’t need new bodies. You just need fresh nozzles. The HolyMaji 10-pack gives you variable arc replacements that fit most standard pop-up heads. It’s the cheapest way to refresh a system without digging anything up.

Each nozzle adjusts from 0 to 360 degrees by twisting the textured top. The POM engineering plastic resists moisture and wear, and the design provides even coverage at close range. Ten nozzles in one pack means you can replace a whole zone or share with a neighbor. For anyone with a small lawn and a handful of heads, this is a practical, low-cost fix.

Here’s the honest part: these are generic nozzles, not Rain Bird or Hunter OEM parts. They fit most standard heads, but not all. The spray distance depends entirely on your system’s water pressure. Twisting the nozzle changes the arc, not the throw. If your pressure is low, these won’t magically fix that. And if you have proprietary heads, check compatibility before buying.

• 10 variable arc nozzles fit most standard pop-up sprinkler heads
• Arc adjusts 0-360 degrees by rotating the textured top
• POM engineering plastic resists moisture and wear
• Even close-range coverage for small lawns and beds
• Low-cost way to refresh an existing system without new bodies

Best for: Budget-conscious homeowners who just need replacement nozzles for existing heads and don’t want to replace the whole assembly.

How We Chose These Products

We started with the constraints of a small lawn. A head that throws 50 feet is wasted on a 20-foot patch. A fixed spray head that only reaches 8 feet leaves dry spots in a 30-foot yard. So we looked for products that match the actual dimensions of compact landscapes, then filtered by build quality, adjustment range, and connection compatibility.

We also considered the buyer’s existing system. Some people are replacing like-for-like. Others are building from scratch. That’s why this list includes rotors, spray heads, bodies-only, and nozzles. Each solves a different problem. We prioritized products with proven mechanisms, like Hunter’s gear drive and Rain Bird’s 1800 Series body, because those designs have decades of field testing behind them. We avoided anything with vague specs or unverifiable claims.

Buying Guide: What Really Matters

Spray distance is the first thing to check. Measure your lawn’s longest dimension. If it’s under 30 feet, a fixed spray head with a 15-foot throw will work. If it’s 30 to 50 feet, you need a rotor like the Hunter PGP-ADJ that can reach 22 to 52 feet. Buying a head that throws too far means overspray on pavement. Buying one that throws too short means dry spots.

Arc adjustment matters just as much. A head with a fixed 90-degree pattern forces you to aim it perfectly. A variable arc head lets you dial in the exact coverage for corners, strips, and odd shapes. Tool-free adjustment is a nice bonus, especially if you tweak your system seasonally.

Pop-up height depends on your grass. Four inches is standard for most residential turf. Six inches is better for tall fescue or St. Augustine. If your grass is short and manicured, a 4-inch head is fine. If it’s thick and shaggy, go taller.

Finally, check your inlet size. Most residential systems use 1/2-inch connections for spray heads and 3/4-inch for rotors. Mixing them requires adapters. Match what you already have to avoid extra fittings and leaks.

Our Top Recommendation

The Hunter PGP-ADJ is the best all-around choice for small lawns that are on the larger side. It covers 22 to 52 feet, adjusts from 40 to 360 degrees, and uses a gear drive that professionals trust. If your lawn is roughly 1,000 to 3,000 square feet and you want one or two heads to do the work of five, this is the one.

For tighter, more detailed landscapes, the Rain Bird 1804VAN is the better pick. It’s tool-free, precise, and perfect for corners and strips. If you have tall grass, step up to the 1806VAN. And if you just need to refresh existing heads on a budget, the HolyMaji nozzles are a smart, low-cost fix. The 1804LN body is for DIYers who want full control over nozzle selection.

Frequently Asked Questions

Can I mix rotor and spray heads on the same zone?

You can, but they have different precipitation rates. Rotors put out water more slowly than spray heads. If they’re on the same zone, the spray heads will overwater while the rotors underwater. It’s better to keep them on separate zones or match precipitation rates with the right nozzles.

How do I know if my system uses 1/2-inch or 3/4-inch inlets?

Check the existing head or the fitting it screws into. Spray heads typically use 1/2-inch NPT. Rotors typically use 3/4-inch NPT. If you’re unsure, unscrew a head and measure the threaded inlet. Adapters are available if you need to switch sizes.

Will a 6-inch pop-up head work if my grass is short?

Yes, but it’s overkill. A 6-inch head pops up higher than needed for short turf, which can make it more visible and slightly more vulnerable to mower damage. Stick with 4 inches unless your grass is genuinely tall.

How often should I replace sprinkler nozzles?

Replace them when you notice uneven spray, clogging that cleaning doesn’t fix, or visible wear. In hard water areas, nozzles can scale up in a season or two. In softer water, they might last five years or more. Inspect them each spring before you fire up the system.
